Description

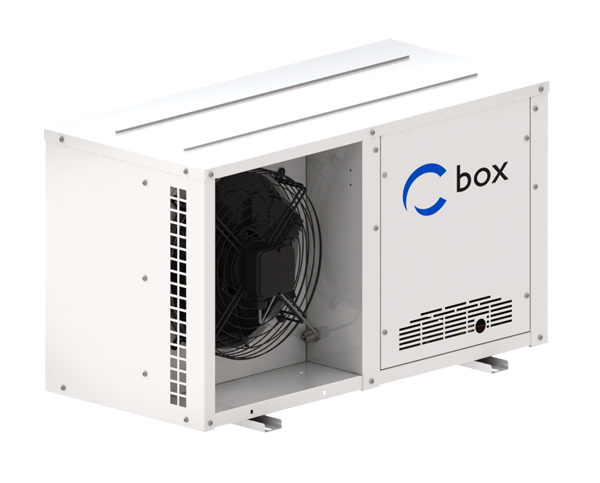

| Technical Datasheet | |
| General | |
| Production Facility | Türkiye |
| Brand | F-BOX |
| Normal | |
| Type of casing | Kapalı Split Tip |
| Application | -10/45°C EN12900/10K-SH |
| Application Areas | Soğuk Muhafaza |
| Room Volume – V (m³) (+40°C) | 10 |
| Room Volume – V (m³) (+45°C) | 8 |
| Room Volume – V (m³) (+50°C) | 7 |
| Refrigerant | R404A |
| Cooling Capacity (Watts) (+40°C) | 1.151 |
| Cooling Capacity (Watts) (+45°C) | 1.019 |
| Cooling Capacity (Watts) (+50°C) | 898 |
| Energy Efficiency (COP) | 1,57 |
| Body Model | FrigoPartner Şase – 1-CHH-135 (Perforesiz) |
| Sound Level | 35,92 DBA/10M |
| Liquid Line | Sanhua SSV-A2GSHC-23- Klima Vanası 1/4″ |
| Suction Line | Sanhua FSV-JA3GSHC-55 3/8 ServV. R404A Serv P. 1/4 |
| Charge Valve | – |
| Net Weight | – |
| Brute Weight | – |
| Compressor | |
| Compressor Brand | Embraco |
| Compressor Type | Hermetik Pistonlu |
| Compressor Model | Embraco NT 6220 GK |
| Compressor Crank Heater | – |
| Compressor Quantity & Power (Pcs-Hp) | 1 x 0,75 |
| Compressor Power Sup. (V / Ph / Hz) | 220 – 230 / 1 / 50 |
| Compressor Discharge line (Ø inches) | 1/4″ |
| Dompressor Suction line (Ø inches) | 3/8″ |
| Condenser & Fan | |
| Condenser Brand | FrigoPartner |
| F&T | |
| Condenser Model | FrigoPartner Kondenser – 1-CHH-135 |
| Condenser Capacity Watts Dt = 15 °C | 4.827 |
| Condenser Fin Space (mm) | 2,1 |
| Condenser Surface Area (m²) | 7,4 |
| Air Flow (m3/h) | 2.477 |
| Fan Motor Brand | Weiguang |
| Fan Motor Model | Ziehl-Abegg S 350 CR43MG030W06A1 Fan Mot – 030558 |
| Rotation (RPM) | 4 Kutup (~1.400 devir) |
| Fan Wing | – |
| Fan Brackets & Grills | – |
| Fan Motor (Quantity x Diameter) | 1×350 |
| Fan Motor Input Power (kW) | 4X0,154 |
| Fan Motor Power Sup. (V / Ph / Hz) | 220 – 230 / 1 / 50 |
| Liquid Line | |
| Liquid Tank | FrigoPartner FRGLR 2SDI – 1/4″ Likit Tankı |
| Filter Dryers | Danfoss 023Z4552 DML 032S K.Filtre 1/4″ Kaynaklı |
| Gas Sightglass | Danfoss 014-0181 SGN 6S – 1/4″ Kaynaklı |
| Solenoid Valve | Danfoss 032F1206 EVR 3 Solenoid Vana 1/4″Kay. |
| Solenoid Valve Coil | Danfoss 018F6176 IP20 12W Bobin 220V50Hz |
| Controller | |
| Combined Pressure Control | – |
| Low Pressure Control | Danfoss 061F9032 ACB-2UC32W A.B.O. 0.3/1.8 bar |
| High Pressure Control | Danfoss 061F9077 ACB-2UC85W Y.B.O. 20.0/25.0 bar |
| Fan Control | Danfoss 061F8490 ACB-2UA392W F.K. 8,5/11,0 bar |
| Electrical Panel | F.Partner ABB 2 – 2,5 hp Embraco Scrl Monofaze Pano |
| Liquid Trap | – |
| Oil Separator | – |
| Condenser Outlet and Liquid Line Valve | – |
| Pressure Line Vibration Preventer | – |
| Suction Line Vibration Preventer | – |
| Low Pressure Manometer | – |
| High Pressure Manometer | – |
